Hydraulic lift-up support systems consist of various components which the fitter adapts to the specific chassis in a specialist workshop. All components are precisely matched by the manufacturers and then installed in the workshop to suit the individual space requirements.
Technical procedures
How the hydraulic levelling system works

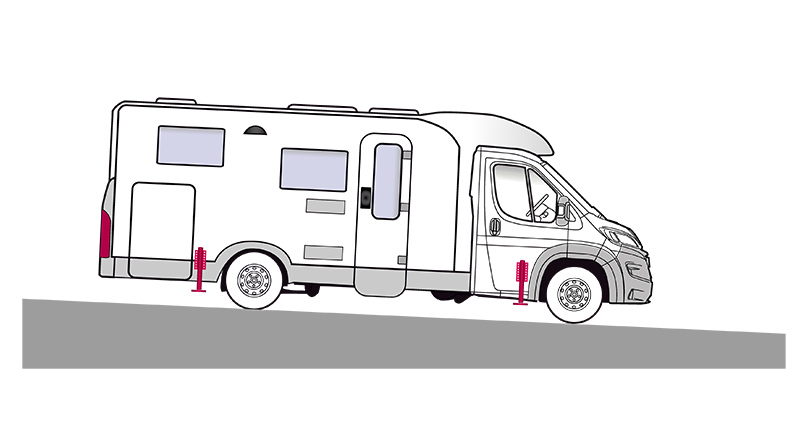

A hydraulic levelling system, such as the Linnepe QuickLift Hydraulik, consists of four levelling jacks, a central hydraulic power unit, hydraulic hoses and an electronic control unit. The system is usually operated via a control panel inside the vehicle. The system automatically extends the four supports and quickly levels the motorhome both lengthways and crossways. Important for levelling: The vehicle should be levelled in a way that protects the bodywork. As with the Linnepe QuickLift Hydraulics, all supports are first extended until they touch the ground. In the next step, only pairs of supports are moved at a time until the vehicle has reached its final position.
Precision in two dimensions
Alignment in the longitudinal and transverse axes

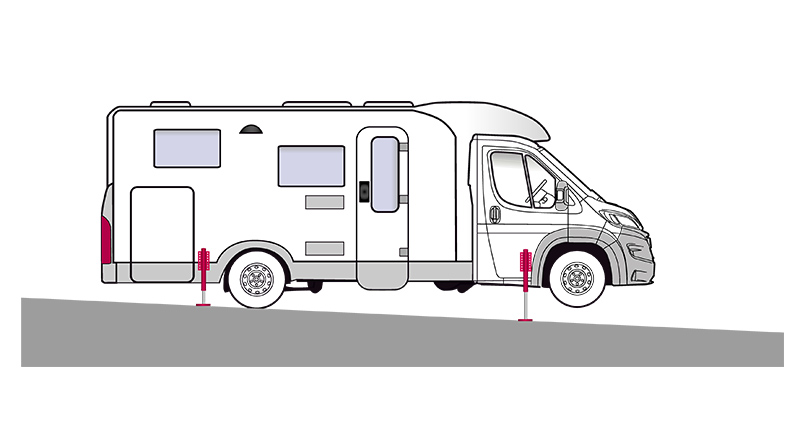

The system ensures a stable final position through coordinated movements. First, alignment takes place in the longitudinal axis, followed by alignment in the transverse axis. This process-controlled sequence ensures that no unnecessary stresses are placed on the structure.
Weight management
Check payload capacity
Hydraulic jack systems can easily handle heavy loads once the vehicle is levelled. Consequently, the hydraulic jacks are appropriately sized and made from solid materials. The weight of the jacks is compounded by the weight of the required oil, pump, hoses, mounting adapters and control unit. Regardless of the manufacturer, a weight of approximately 60 to 65 kilograms must be taken into account. The vehicle should therefore have sufficient load-carrying capacity. If the load capacity reserves are almost exhausted, in most cases more headroom for the additional weight can be created by increasing the load capacity.
Structural requirements
Ground clearance and mounting position
Hydraulic jacks must overcome the vertical distance from the retracted position to the ground and then raise the vehicle to a horizontal position. Depending on the vehicle, single-stage or two-stage hydraulic cylinders are fitted, which can cover a relatively large distance. The point on the vehicle frame where the jack is mounted must be capable of withstanding the corresponding forces. Trained specialist workshops select the optimal position for the jacks to prevent any twisting of the bodywork. These locations are often restricted in height, which limits the installation height of a jack. Consequently, on some vehicles, this can result in the jacks protruding slightly beyond the vehicle frame and restricting ground clearance.
Special features of four-wheel drive
vehicles
Challenges with 4x4 vehicles
Four-wheel drive vehicles present a special case, as their design gives them a high ground clearance. The enormous distance that jack stands must cover to raise such vehicles to a horizontal position requires very tall hydraulic cylinders. It is generally not possible to fit these without compromising ground clearance, a point that owners of 4x4 vehicles should bear in mind.
A critical look at additional options
Weighing function on the lifting support system
At first glance, a weighing function on the hydraulic lifting support system seems like a sensible addition. Manufacturers offering such an option on their systems specify a measurement accuracy that can vary by up to 3% from the actual weight. If the vehicle is loaded to its weight limit (or beyond), this discrepancy could result in a fine if stopped by the authorities. The actual vehicle weight should therefore always be checked again on a calibrated weighbridge.
